INDUSTRIAL FILTRATION
Filtration is the process of passing a fluid through a porous material, causing particles that contaminate the fluid to become trapped in the material. This results in a cleaner fluid. Industrial fluids are filtered to remove metallic particles created by the manufacturing process. Removing the particles will extend the useful life of the fluid, and reduce the cost of the manufacturing process.
Interested in learning what filtration solutions Crystal Filtration can provide you? Contact Us!
There are four important characteristics of filter media: strength, pore size, capacity, and chemical compatibility.
PLEATED BAGS/CARTRIDGE FILTERS
Benefits:
-
Up to 12 times the surface area provides greater dirt holding capacity and fewer bag changes.
-
Filter efficiency can be customized for your application.
-
Reusable steel basket.
-
Can be used to replace filter bags.
-
Can be used to replace filter cartridges, reducing initial cost and ending. the problem of disposing or recycling the steel skeleton.
Crystal Filtration’s pleated filter bags were originally developed to eliminate the needle hole found in sewn filter bags. These perforations are typically 60 microns wide and can make the difference between a 10 micron bag that removes 10 micron particles and one that leaves 50 micron particles in the fluid.

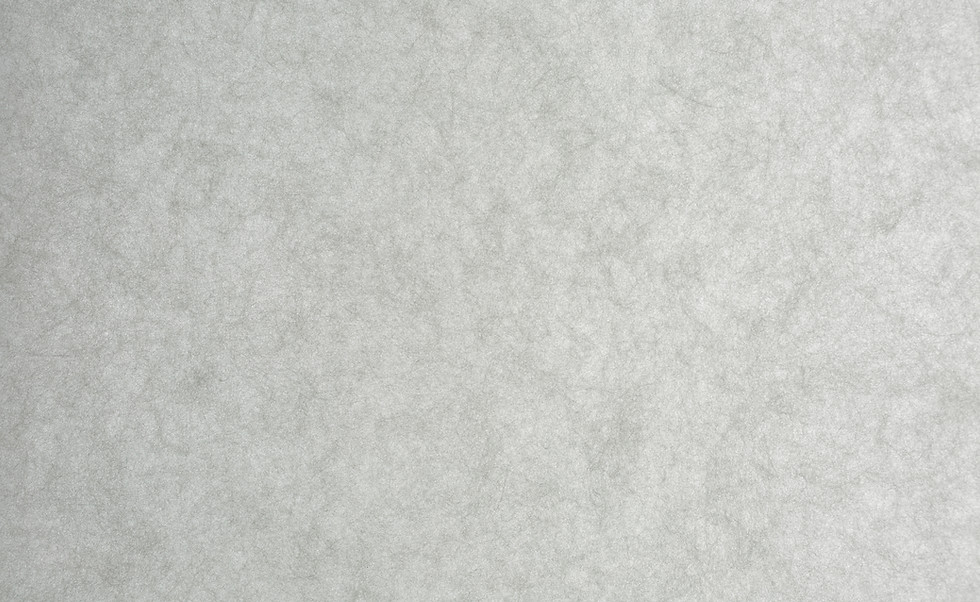

NONWOVEN ROLL MEDIA
Filter media removes unwanted particles and pollutants from a range of liquids, from metalworking coolants to cooking oils, and everything in between. No matter how fluids are used, they will inevitably gather particles that reduce their efficiency, shorten their lifespan and harm equipment. Filter media removes these pollutants, extending the useful life of the fluid as well as reducing wear and tear on the equipment.
MicroClean™ captures your smallest particles, providing the cleanest possible coolant. The small pore structure of the middle layer limits capacity, therefore MicroCLEAN may not be suitable for very high flow rates.
MicroCLEAN is ideal for filtering coolants used for honing and polishing when clarity is critical. Filter cycles with MicroCLEAN often more than double that obtained with SMS filter media.
General Points
-
Strong enough for most applications
-
Superior efficiency
-
Good capacity for small particulate
-
Provides the cleanest coolants
MicroClean™
CoCLEAN™’s mixture of microfibers, allows small particles to be captured deep within the filter media without causing the media to blind prematurely. Black backing provides strength for the most demanding applications and easy identification to insure proper installation of the media.
CoCLEAN™ is ideal for filtering steel mill rolling oils and coolants used for honing and polishing when clarity is critical.
General Points
-
Superior Efficiency
-
Great capacity for small particulate
-
White side up
-
High bulk-increased void volume
CoClean™
This composite improves capacity and flexibility in many metal working fluids. The weight possibilities with HTM are endless. This media would be an excellent selection for small, medium, and large grinding.
Layered HTM is made by laminating multiple layers of thin spunbond materials to make a uniform structure.
General Points
-
Great flexibility and application
-
Good capacity and strength
HTM™ Composite Media
This layered composite media is engineered to deliver increased material capacity and extended operational life. Its robust construction offers exceptional strength and flexibility, making it ideal for a wide range of honing and grinding applications, from precision small-part finishing to demanding large-scale operations.
General Points
-
Multi-application flexibility
-
High Strength
-
Enhanced Capacity
-
Uniform Structure
-
Captures small particulate
CrystalLoft
CRYSTALFIL™
CRYSTALFIL™ is a polyester/nylon blend media specifically designed to filter out fine particulates while handling high heat and high pressure applications. CFIL80 is food grade and approved for use in conjunction with most hot oil filter aids and hot oil treatments.
General Points
-
Safe for food contact
-
Viable under high heat and pressure
-
Helps extend frying oil life
-
Used in conjunction with hot oil treatment powders, including FILSORB®
-
Fine particulate filtration - optimal for honing applications
COTRON is a mixture of cellulose and melt-blown polypropylene supported by a lightweight spunbond polypropylene and is designed to remove small particulate without rapidly blinding. It is nor very strong and is recommended for gravity applications where other media are either too porous or blind too rapidly. Ideal for use on gravity filters when filtering coolants used in fine griinding and honing applications.
General Points
-
Good Flow
-
High Efficiency
-
Increased Filter Life
-
Low Strength
-
Chemical Resistance
COTRON™
Most of the original coolant filters used Carded Rayon filter media. It was much less expensive than the woven cottons it replaced and provided good filtration efficiency. This commodity product was too weak for use in most vacuum filters and went out of favor when Hydromation Flatbed filters were replaced by vacuum filters.
General Points
-
Poor strength requires good support in the filter
-
Fluids readily flow through media, even at low pressure drops
-
Tolerant of tramp oil
-
Uniform pore distribution
Rayon
Layered Polypropylene has improved uniformity, capacity, and strength, without sacrificing the price savings one expects from polypropylene. Like all of Crystal Filtration’s filter media, it can be recycled into other products after it has completed its useful life as a filter medium.
General Points
-
Great strength
-
Improved capacity
-
Higher bulk than standard polypropylene
Layered Polypropylene
Polypropylene spunbonds are made from continuously extruded resins that are then point bonded for strength. Polypropylene is resistant to chemical attack but is prone to surface binding especially in the presence of tramp oils. Its low price makes Polypropylene ideal for filtering larger particle sizes such as those found in machining applications.
General Points
-
Continuous fiber thermally pointbonded for high strength
-
Uniform fiber size provides high level of porosity
-
Surface filtration
Polypropylene
Polyester Felt is a high loft filter media that captures bigger particles on the surface and smaller particles deep within the web. The high loft provides high dirt holding capacity. The fibers are first entwined together before heat is applied to bond them into a high strength web.
Polyester felts are well suited for filtering coolants used in grinding applications. They are generally not suitable for particulate smaller than 20-25 micron.
General Points
-
Long filter life
-
High strength
-
Good chemical resistance
-
Available in various weights and sizes
-
Weights greater than 8oz are often used in filter bags
Felts
Polyester allows good flow and is tolerant of coolants with high levels of tramp oil. This product is most commonly found in applications where high strength is required and the particle sizes are large such as in coarse grinding or machining.
Spunbond Polyester is recommended for applications with larger debris and with heavy dirt loads requiring higher strength. Not recommended for fine filtration. We can make and sell all weights.
General Points
-
Continuous fiber thermally bonded for high strength
-
Uniform fiber size provides high level of porosity
-
Surface filtration • Available 0.5-3.0 ounces/sq. yd.
Polyester
POWERLOFT®
POWERLOFT® has a gradient density that allows small particles to be captured deep within the web while larger particles are captured closer to the surface and only the very largest particles are captured on the surface. Debris is captured throughout POWERLOFT®, providing long filter cycles, good clarity, and lower operating cost.
POWERLOFT® is ideal for filtering coolants used in metal machining, grinding, drilling, honing, lapping, polishing, and any time the filter is undersized. Filter cycles with POWERLOFT® are often 5-10 times that of standard media.
General Points
-
Outstanding dirt holding capacity
-
Long filter life
-
Superior efficiency
-
High strength
-
Dual density construction
-
Good chemical resistance
-
High bulk-Increased void volume
ConFil
Uniform fiber distribution creates higher efficiency than other nonwovens. Weakness caused by short fiber lengths and potential chemical attack on the binder makes wet laid materials inappropriate for some high load applications.
Confil filter media are recommended for filtering fluids used in washer, rolling, grinding, honing, and some gravity applications.
General Points
-
Uniform fiber distribution makes Confil excellent for removing small particles
-
High efficiency at low basis weight
-
Heavier webs are required to offset low strength
-
Available in 1.0, 1.5, and 2.5 oz. basis weight
R30 is blended from a mixture of cellulose and polyester fibers with a chemical binder. The fiber distribution is very uniform allowing for a consistent pore size and a high efficiency to weight ratio.
Recommended for filtering fluids used in metal grinding and machining. Suitable for all filters up to 61” wide.
General Points
-
Good flow rate even under low pressure
-
Good efficiency
-
Good Filter life
-
High Strength
-
Uniform Pore size distribution
-
Max Width is 61”
R30
EnviroClean™
EnviroCLEAN is the first filter media made from 100% recycled plastic beverage containers and like all of Crystal Filtration’s other filter media, EnviroCLEAN filter media can be recycled again into other products after it has completed its useful life as a filter medium.
EnviroCLEAN is ideal for filtering coolants used in metal machining, grinding, drilling, or any time high strength is required.
General Points
-
Outstanding dirt holding capacity
-
Long filter life
-
Made from recycled bottles
-
High Strength
-
Good chemical resistance
-
High bulk-Increase void volume
Crystal Clean Product Line
The product that started it all! Representing the Original Patented Technology That Launched Crystal Filtration. This line of high efficiency filter media set a new standard for coolant filtration in metalworking and aluminum can manufacturing.
Find out more about this product’s history here!
Crystal Clean S510
A versatile, high efficiency filter media designed for general coolant filtration. S510 delivers dependable particulate capture and flow stability, making it ideal for a wide range of industrial systems.
Crystal Clean S520
An enhanced performance option engineered for higher load environments. S520 offers increased durability, extended service life, and superior performance where filtration demands are more intense.
General Points
-
Clog resistant performance for stable, uninterrupted coolant flow
-
High particulate capture efficiency to protect equipment and improve coolant life
-
Longer media life that reduces consumption and lowers operating costs
-
Reliable performance proven across metalworking, machining, and can manufacturing applications
-
A legacy of innovation rooted in the very first product Crystal Filtration ever produced
This product is exclusively distributed by JRSchneider. For pricing, availability, and to place an order please visit: https://jrschneider.com
CyClean Product Line
CyClean media protects pumps, tooling, and coolant systems by capturing very small contaminants while maintaining steady flow. Manufactured to consistent quality standards and tested to recognized ASTM methods, CyClean provides predictable performance and measurable savings across production environments.
CyClean 3CC
Balanced, fine particulate filter media engineered for steady coolant flow, reliable particulate capture, and predictable service life in machining, honing, lapping, and polishing operations.
CyClean 4CC
A more robust member of the CyClean family. Enhanced performance option engineered for higher load environments.High capacity media designed for heavy particulate loads and extended change intervals. Ideal where durability and long service life are required.
General Points
-
Fine particulate removal for improved process control and surface finish
-
Durable construction for extended service life and fewer changeouts
-
Abrasion resistance to withstand demanding coolant streams
-
Thermal stability for high temperature operations
-
Consistently tested properties so performance is repeatable and verifiable
This product is exclusively distributed by JRSchneider. For pricing, availability, and to place an order please visit: https://jrschneider.com
Filta Filter Cartridge Product Line
Filta Filter Cartridges are engineered to support efficient cooking oil filtration by capturing food particulate and moisture that contribute to oil degradation. Designed for compatibility with Filta filtration systems, these rolled cellulose cartridges provide consistent oil clarification while maintaining steady flow during filtration cycles. Manufactured to precise specifications, Filta cartridges help improve oil quality, extend usable oil life, and support cleaner frying operations.
F-Style Cartridge
Designed for balanced filtration performance, the F-Style cartridge captures larger particulate while maintaining efficient oil flow through the filter system. Constructed from high-heat cellulose media, it provides dependable filtration and extended service life in standard fryer filtration operations.
H-Style Cartridge
The H-Style cartridge features a slightly tighter filtration structure for improved particulate capture while maintaining consistent flow. Manufactured from high-heat cellulose media, it helps remove contaminants that contribute to oil degradation and supports improved oil clarity.
General Points
-
Designed for use with Filta oil filtration systems
-
Captures food particulate and moisture that accelerate oil degradation
-
Cellulose media helps absorb moisture and reactive contaminants
-
Rolled cylindrical cartridge construction for consistent filtration flow
-
Helps extend cooking oil life and maintain product quality
-
Individually wrapped cartridges for convenient handling and storage
This product is designed for and exclusively distributed by The Filta Group. For pricing, availability and to place and order please visit: https://gofilta.com
Crystal Filtration Pleated Filter Bags
Crystal Filtration pleated filter bags are engineered for heavy dirt load applications where both clarity and long service life are critical. The high loft pleated polyester felt is fully self supporting, maximizing usable filter area and extending life in systems where surface blinding is a common issue.
Each bag features a high strength elastomeric urethane top that delivers excellent sealing performance and resists oil, chemicals, and elevated temperatures. The rigid urethane bottom provides additional durability and stability under pressure, ensuring consistent performance in demanding industrial environments.
Crystal Filtration can also design fully customized pleated bags, based on tailored media types, urethane styles, and bag dimensions to meet specific customer requirements and application challenges.
General Points
-
Extended Filter Life
-
Superior Durability
-
Precision Fit
-
Lower Operating Cost
-
Fast, Simple Change Outs
-
Custom Engineered Options
Standard Sizes
27.5", 26.25" and 13.5" tall. These sizes are stocked and readily available. Crystal Filtration can also manufacture custom dimensions to meet specific housing or applications requirements.
Available Media Options
-
Polyester Felt - High loft, self-supporting construction designed for maximum dirt holding capacity and extended filter life.
-
Polyester Cellulose - Ideal for applications requiring tighter filtration efficiency and improved clarity
Media selection affects pleat count, basis weight, total filter area and airflow (CFM). Crystal Filtration does not use glues or adhesives in pleated media construction, eliminating the risk of melting, delamination, or contamination in high heat applications.
Urethane Options
-
Solid, Flanged, Soft or Rigid, Domed ("punt") bottom
Urethane hardness, color, and geometry can be customized based on application needs. Domed (“punt”) bottoms are often recommended for systems prone to blowout or pressure spikes, providing additional structural resilience.
Stainless Steel Support Baskets
All Crystal Filtration pleated bags are designed to be used with a reusable stainless steel basket, which we supply. The basket provides structural strength comparable to a full steel filter design but at a significantly lower cost. It also ensures proper fit within the housing and enhances overall filtration performance.
10 Micron Pleated Filter Bag (PBP2RF3345)
Crystal Filtration’s 10 Micron Pleated Filter Bag (PBP2RF3345) is a widely used solution for demanding filtration applications requiring high fluid clarity. Designed for heavy dirt-loading conditions, this filter bag delivers extended service life and consistent performance.
Constructed with high-loft pleated polyester felt, the media is self-supporting to maximize surface area and optimize dirt-holding capacity. This design helps reduce surface blinding and significantly extends filter life in challenging applications.
The high-strength elastomeric urethane seal provides excellent leak resistance and durability, with strong resistance to oils, chemicals, and elevated temperatures. The bag is engineered to fit and seal securely in Rosedale-style and equivalent flat-bottom filter baskets.
